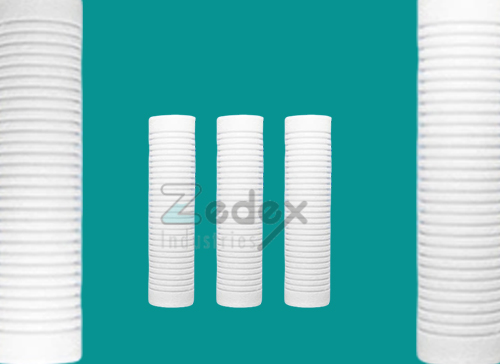

Spun Bonded Filter Cartridge

Spun bonded filter cartridges are made up of 100% polypropylene fibers. The fibers have been carefully spun together to form a true
gradient density from outer to inner surface. Filter cartridges are available with core & without core version. The superior structure
remains integral even under severe operating conditions and there is no media migration. Polypropylene fibers are blown continuously on
central molded core, without any binders, resins or lubricants.

Operation

Unfiltered fluid passes through depth filter matrix and enables the progressive retention of finer particles, which provides high efficiency,
high dirt retention & long filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix
and clean fluid flows to the downstream side of cartridge.

Salient Features

• – Free of surfactants, binders and adhesives
• – Excellent flow with low pressure drop
• – High dirt holding capacity
• – 100 % Polypropylene for wide chemical compatibility
• – High strength & pressure resistance
• – One piece construction up to 1016 mm & more
• – Nominal & absolute filtration rating
• – NSF42 and FDA CFR title 21 Certified cartridges are available
